TEC TC-760LC MC / MM Professional Phono Pre-Amplifier

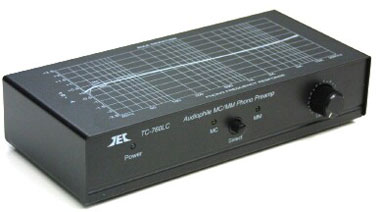

TC-760LC Pre-Amplifier Front
  • Your record player has a highly sensitive pick-up, but its sound doesn't match your perfection?
  • You have a MC pick-up, but no suitable input for your amplifier?
  • You want to digitalize your record collection in high quality, but your computer has no phono input?
  • You want to run 2 record players (1 MC, 1 MM) parallelly?

Then this device is exactly what you need!

The TEC TC-760LC equalizes and gains the "tender" signal of highly sensitive pick-ups significantly better than the usual phono preamp.

The TC-760LC was newly developed in 2006. Since than it is the new insider tip among enthusiasts of vinyl records.

Even so the favourable price for this high-end device will surprise you.

2 cables for connecting amplifiers and computers respectively are included.
Recommended price for end customers
Euro 80.00 incl. 19% VAT

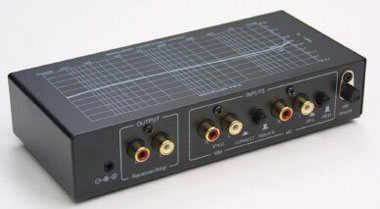

TC-760LC Pre-Amplifier Back
Specifications

  • 2 Phono Inputs (1 MC, 1 MM)
  • 1 Line Output (Cinch)
  • Volume Control
  • Frequency Response: 20 Hz to 20 kHz ±0,5dB
  • Input Sensitivity MM: 3 mV @ 1 kHz
  • Input Sensitivity MC: 600 μV @ 1 kHz
  • Input Impedance MM: 47 kΩ @ 200 pF
  • Input Impedance MC: 100 Ω oder 20 Ω, switchable
  • Gain at 1 kHz MM: 38 dB
  • Gain at 1 kHz MC: 58 dB
  • Maximum Input MM: 28 mV
  • Maximum Input MC: 15 mV
  • Signal-to-Noise Ratio MM: > 82 dB
  • Signal-to-Noise Ratio MC: > 75 dB
  • Maximum Output MM: 1,8 V @ 1 kHz, adjustable
  • Maximum Output MC: 1,7 V @ 1 kHz, adjustable
  • Total Harmonic Distortion: < 0,005 %
  • Gold-plated Connectors
  • Solid, Black Metal Case
  • Grounding for Record Player
  • LED Indicator for chosen Input
  • Colour LED for On-/Off-Switch
  • CE certified
  • Direct Current Sink: Device can be used worldwide
  • Power Supply (12 Volts DC) included
  • 2 Stereo-Cables (1 Cinch-Cinch, 1 Cinch-Minijack) included
  • Dimensions: 180 mm × 73 mm × 37 mm
  • Weight: 960 g (with Power Supply)

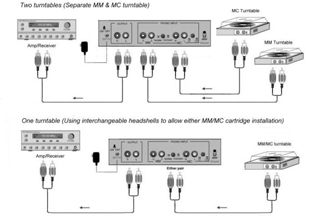

TC-760LC Pre-Amplifier Gift Box Cable TC-760LC Connections
