Audio/Video - High Quality - Classical Design

Phono Pre-Amplifier
Line-Level Booster
Integrated Amplifier
TEC TC-770LC Stereo Line Level Booster
TC-770LC Pre-Amplifier Front
The TEC TC-770LC permits the interconnection of a number of audio sources. It incorporates a high gain, accurate phonograph stage, a microphone stage, and an auxiliary input stage. Gain or volume is front panel adjustable.

This device is THE solution, when you want to

  • connect a MP3 player and a record player to a preamp or receiver
  • connect up to two microphones and an auxiliary source
  • have an extra volume control.

The TEC TC-770LC is for connecting a turntable to a Hi-Fi system that has no phono input, or for adding a second turntable to a system that has only one phono input It can also be used with the line input on any computer sound card to permit phono playback thru PC multimedia systems for recording onto harddisc and editing, as well as producing CD copies and MP3 recordings for your mobile portable music collection.

Connected in series following any of our phono preamps, the TEC TC-770LC can be used to correct the annoying level mismatch caused by very low output level MM cartridges.

Another possible use is the addition of a volume control between a line level source and a power amp which has no output level adjustment of its own.

2 cables for connecting amplifiers and computers respectively are included.
Recommended price for end customers
Euro 110.00 incl. 19% VAT
TC-770LC Pre-Amplifier Back

  • 1 MP3/Aux Input (Minijack)
  • 2 Mic Inputs (Jack)
  • 1 Phono MM Input (Cinch + DIN parallel)
  • 1 Aux Input (Cinch)
  • 1 Line Output (Cinch)
  • Volume Control with integrated on/off switch
  • Gain: MP3: 20 dB, Phono: 60 dB (variable)
  • Frequency Response: 20Hz to 20kHz ±0,5dB (Phono/Mic), ±0,25dB (Aux/MP3)
  • Signal-to-Noise Ratio: > 76 dBA (Phono/Mic), > 90 dBA (Aux/MP3)
  • Total Harmonic Distortion: < 0,05 % (Phono), 0,08 % (Mic), 0,007 % (Aux/MP3)
  • Gold-plated Connectors
  • Solid, Black Metal Case
  • Grounding for Record Player
  • CE certified
  • Direct Current Sink: Device can be used worldwide
  • Power Supply (12 V DC) optional
  • 2 Stereo-Cables (1 Cinch-Cinch, 1 Cinch-Minijack) included
  • Dimensions: 210 mm × 107 mm × 43 mm
  • Weight: 920 g (with Power Supply)

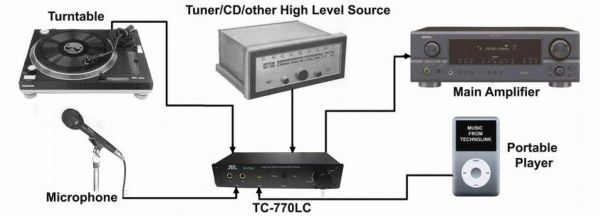

Cable TC-770LC Connections
